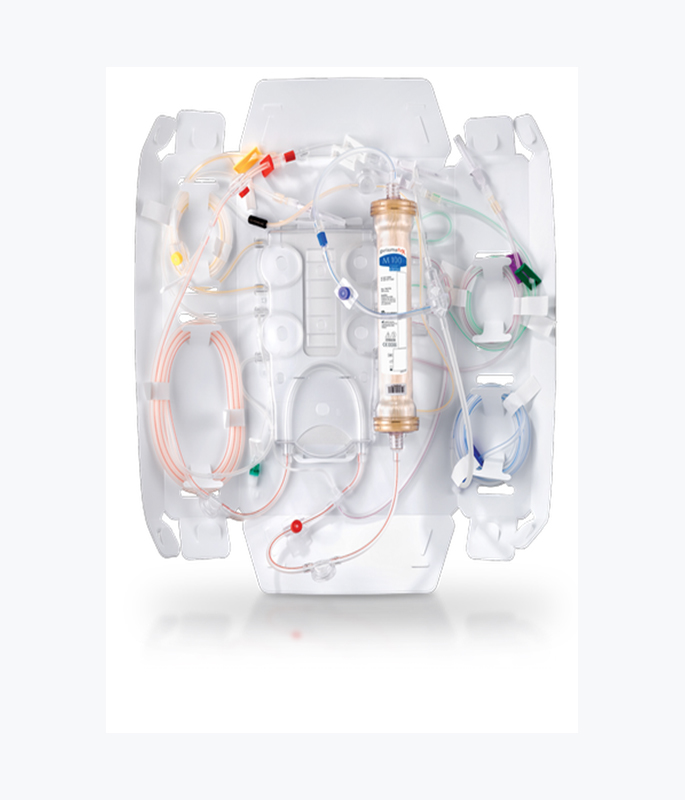

The PRISMAFLEX Set is indicated for use only with the PRISMAFLEX Control Unit in providing continuous fluid management and renal replacement therapies. The system is intended for patients who have acute renal failure, fluid overload, or both. This set is intended for use in the following veno-venous therapies: SCUF; CVVH; CVVHD; CVVHDF.

Materials

• AN 69 HF hollow fiber: Acrylonitrile and sodium methallyl sulfonate copolymer
• Filter housing and headers: Polycarbonate • Filter potting compound: Polyurethane
• Tubing material: plasticized polyvinyl chloride (PVC)
• Cartridge: PETG
• Sterilization mode: EtO (ethylene oxide)
• Not made with natural rubber latex
• Contains DEHP, which may pose risks to infant development

Filter operating specifications

• Maximum TMP* (mmHg/kPa): 450/60

Minimum blood flow rate:

• PRISMAFLEX M60 Set: 50 ml/min
• PRISMAFLEX M100 Set: 75 ml/min

Filter data Nominal physical characteristics – Effective surface area:

• PRISMAFLEX M60 Set: 0.6 m²
• PRISMAFLEX M100 Set: 0.9 m²
• PRISMAFLEX M150 Set: 1.5 m²
• Fiber internal diameter (wet): 240 µm
• Fiber wall thickness: 50 µm
