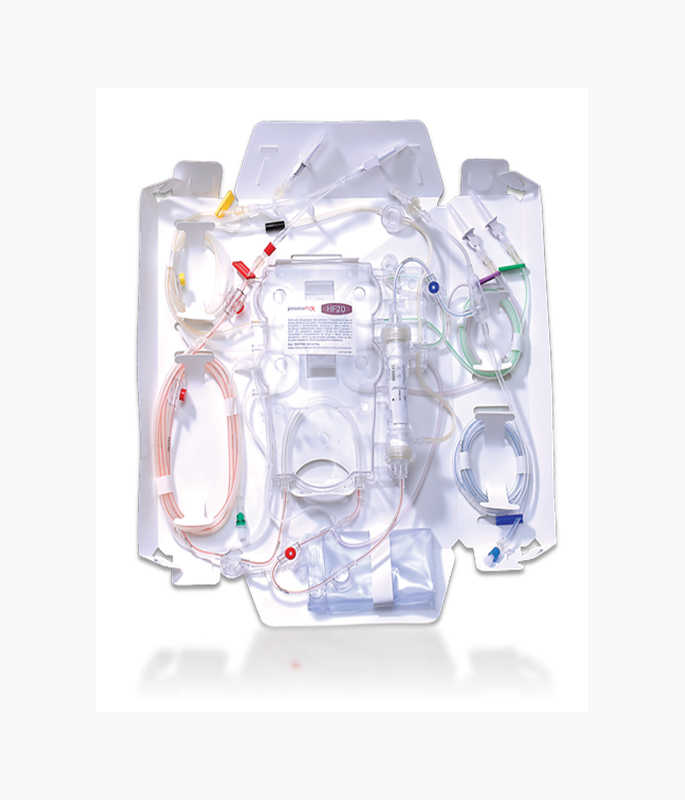

HF20 SET FOR CRRT FOR LOW BODY WEIGHT PATIENTS
Preconnected Hemofilter Sets with the PASE Dialyzer Membrane for CRRT
WHAT IS PRISMAFLEX SET?
The PRISMAFLEX Set is indicated for use only with the PRISMAFLEX Control Unit in providing continuous fluid management and renal replacement therapies. The system is intended for patients who have acute renal failure, fluid overload, or both. This set is intended for use in the following veno-venous therapies: SCUF; CVVH; CVVHD; CVVHDF.
PHYSICAL CHARACTERISTICS : HF20 set
- Membrane effective surface area: 0.2
- Fiber wall thickness : 50 μm
- Blood volume in set: 58 ml
- Overall dimensions 27 x 22 x 9 cm
- Weight 677 g
Materials
- PAES hollow fiber: Polyarylethersulfone
- Housing and headers: Polycarbonate
- Potting compound: Polyurethane
- Tubing material: Plasticized polyvinyl chloride (PVC)
- Cartridge: PETG
- Sterilization mode: EtO (ethylene oxide)
OPERATING PARAMETERS
- Maximum TMP (mmHg/kPa) 500/66.6
- Maximum blood pressure (mmHg/kPa) 500/66.6
- Minimum blood flow rate 20 mL/min
- Maximum blood flow rate 100 mL/min
